I-beam
I-beam is mainly divided into ordinary I-beam, light I-beam, and wide flange I-beam. According to the height ratio of the flange to the web, they are further divided into wide, medium, and narrow width wide flange I-beams. The first two are produced in sizes 10-60, i.e., the corresponding height is 10-60 cm. Under the same height, the light I-beam has a narrow flange, thin web, and light weight. Wide flange I-beam, also known as H-beam, has a cross-section characterized by two parallel legs and no slope on the inside of the legs. It is an economic section of steel, which is rolled on a four-roller universal mill, so it is also called a "universal I-beam".
H-beam
H-beam is a kind of economic section and efficient profile with more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio, named because its section is the same as the English letter "H". Since all parts of the H-beam are arranged at right angles, H-beam has the advantages of strong bending resistance in all directions, simple construction, cost saving, and light weight of the structure, etc., and has been widely used.
|

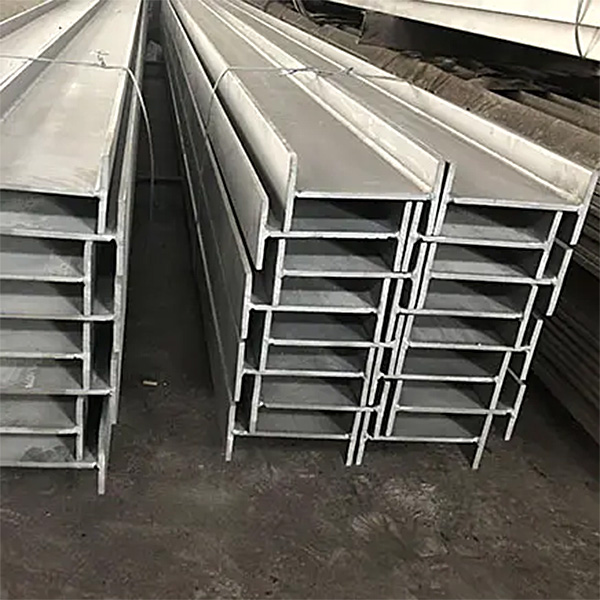

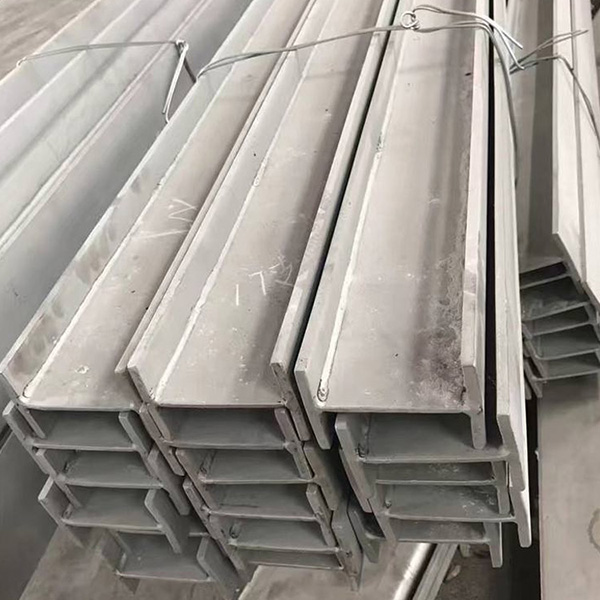

Product Name |
Stainless Steel H/I Beam |
|
Grade |
301 304 304L |
|
Standard |
ASTM,JIS,GB,EN,DIN |
|
Surface Finish |
Polishing , HL , Pickling |
|
Technique |
Hot drawing , Welded |
|
T1 |
4.5mm-21mm |
|
T2 |
7mm-35mm , or as required |
|
H*B |
100mm*100mm-900mm*300mm |
|
Quality Test |
We can offer MTC (Mill Test Certificate ) |
|
Sample |
Provided Freely |
|
Payment Terms |
L/C T/T ( 30% Deposit ) |
|
Container Size |
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High) |
|
Delivery Time |
Within 7-15 Working Days |
